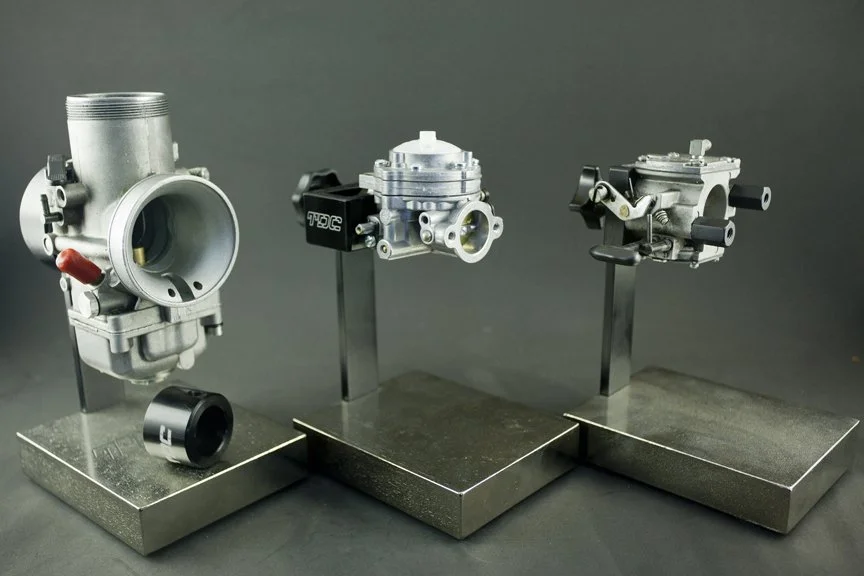

Carb Stands
TDC 837**

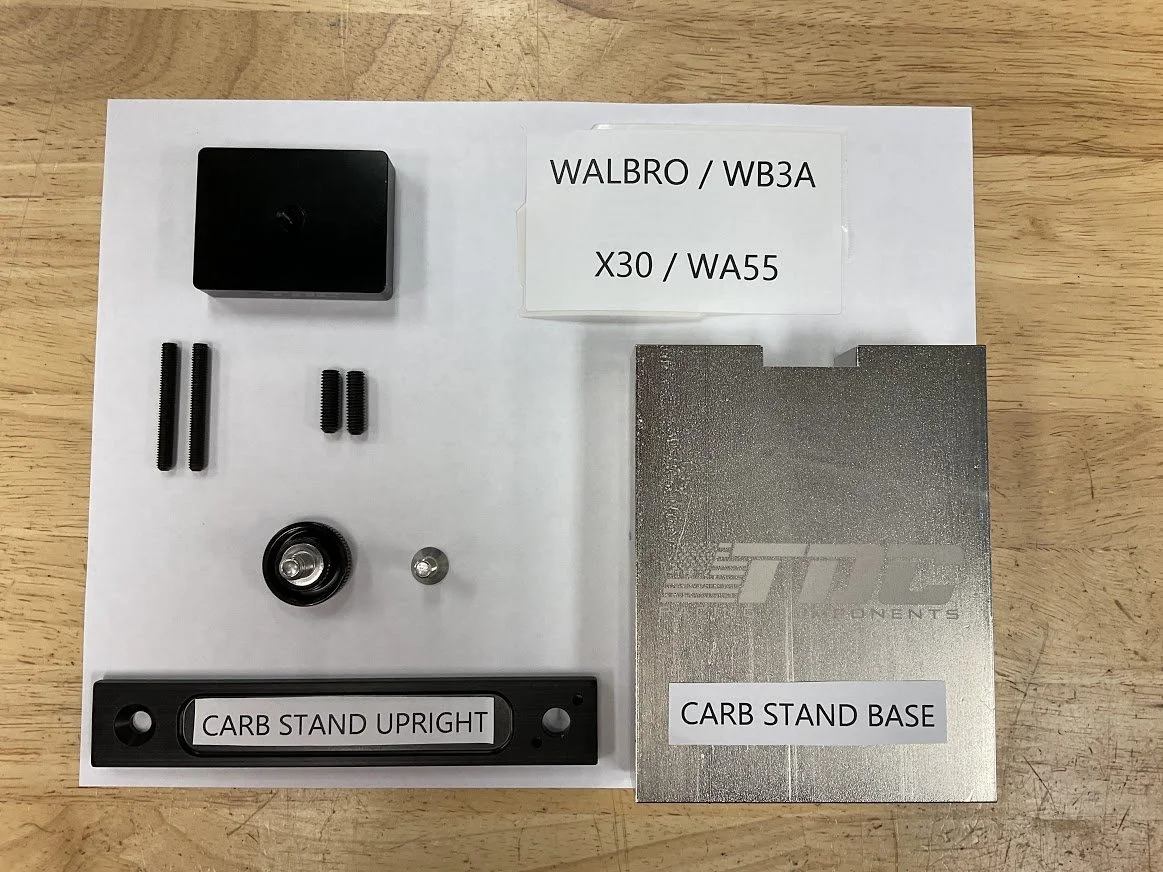

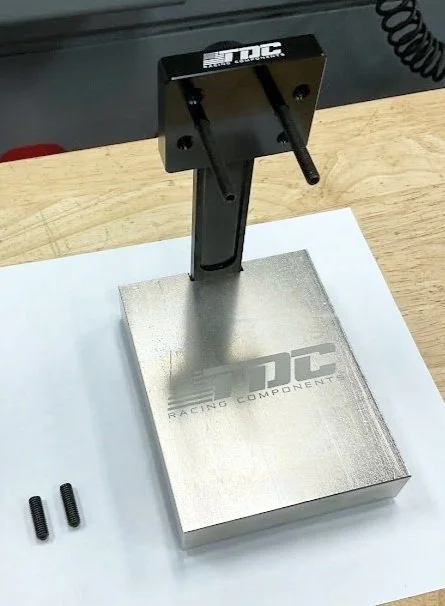

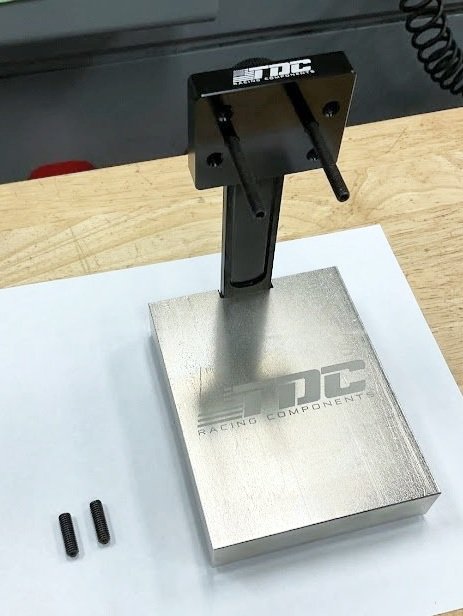

Walbro WB3A / X30

TDC 837-W


Hardware Needed:

  • Set Screw, M6 x 1mm, 20mm Long, (Qty 2) 91390A133

  • Set Screw, M5 x 0.8mm, 40mm Long, (Qty 2) 91390A540

  • Thumbscrew Knob, M8 x 12mm, 26mm Diameter, (Qty 1)

Included in ALL carb stands:

  • Carb Stand Base (Qty 1)

  • Carb Stand Upright (Qty 1)

  • S.S. Flat Head, M6 x 1mm, 14mm Long (Qty 1) 92125A237

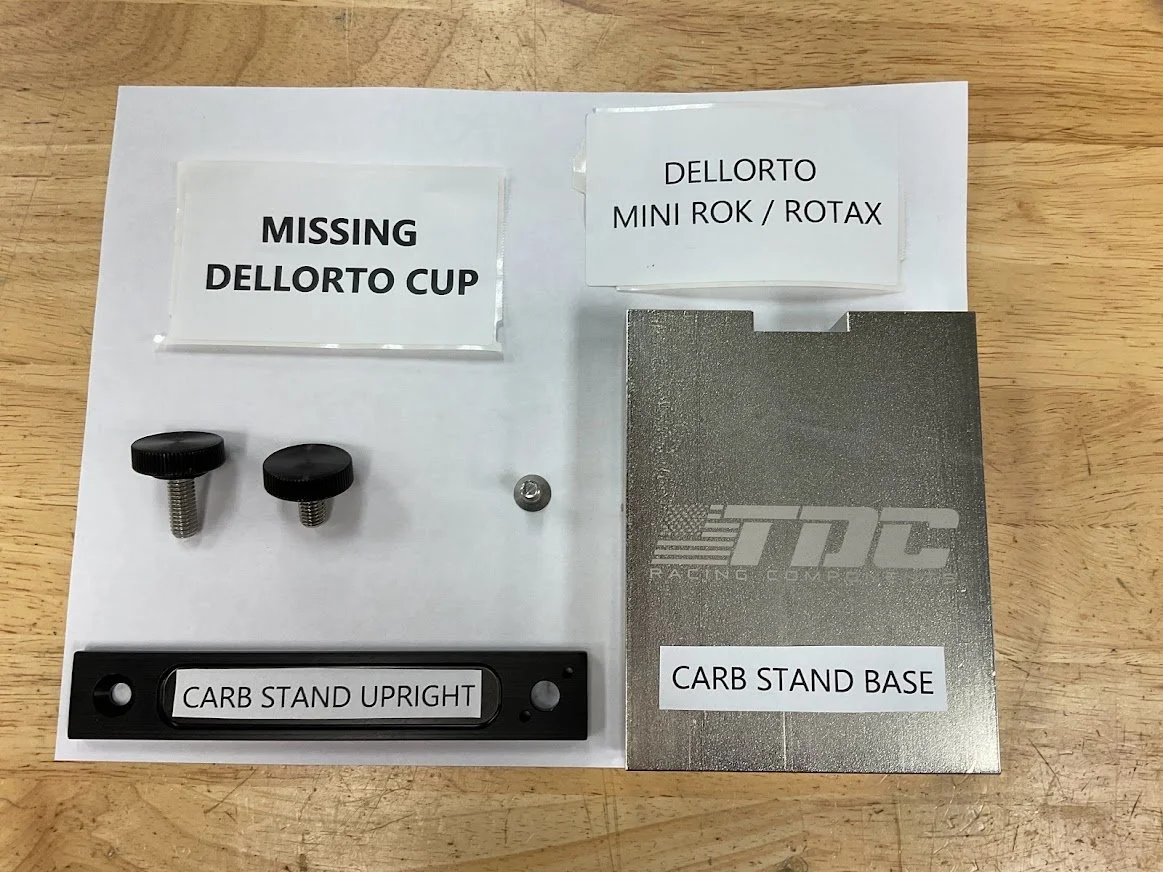

Rotax / MiniROK / Dellorto

TDC837-D:

Hardware Needed:

  • Set Screw, M6 x 1mm, 20mm Long, 91390A133

  • Set Screw, M5 x 0.8mm, 40mm Long, 91390A540

  • Thumbscrew Knob, M8 x 12mm, (Qty 1)

  • Thumbscrew Knob, M8 x 20mm, (Qty 1)

  • Dellorto Carb Cup

Included in ALL carb stands:

  • Carb Stand Base (Qty 1)

  • Carb Stand Upright (Qty 1)

  • S.S. Flat Head, M6 x 1mm, 14mm Long (Qty 1) 92125A237

WA55

TDC837-55

Hardware Needed:

  • Set Screw, M6 x 1mm, 20mm Long, (Qty 2) 91390A133

  • Set Screw, M5 x 0.8mm, 40mm Long, (Qty 2) 91390A540

  • Thumbscrew Knob, M8 x 12mm, (Qty 1)

Included in ALL carb stands:

  • Carb Stand Base (Qty 1)

  • Carb Stand Upright (Qty 1)

  • S.S. Flat Head, M6 x 1mm, 14mm Long (Qty 1) 92125A237

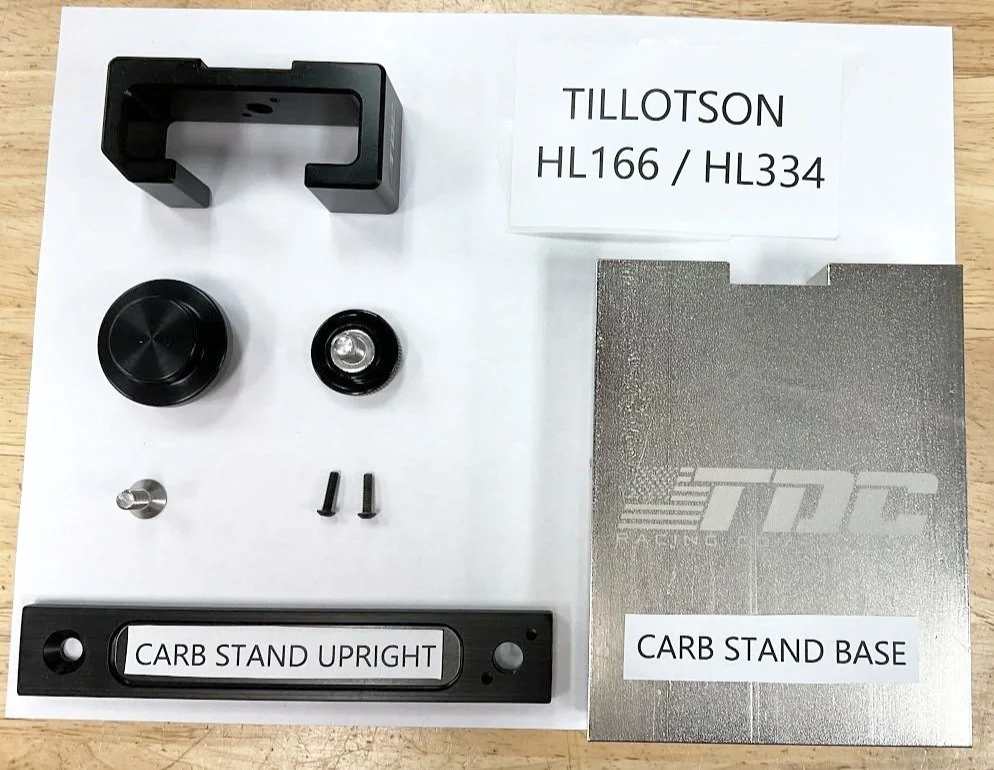

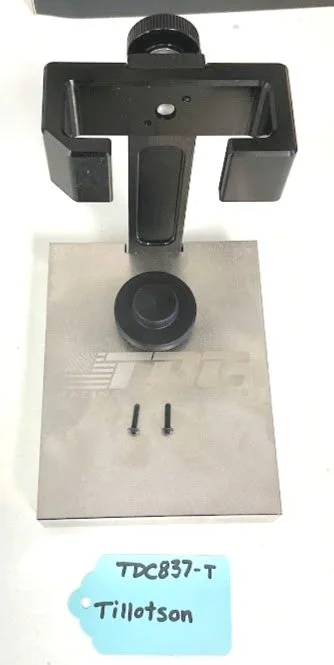

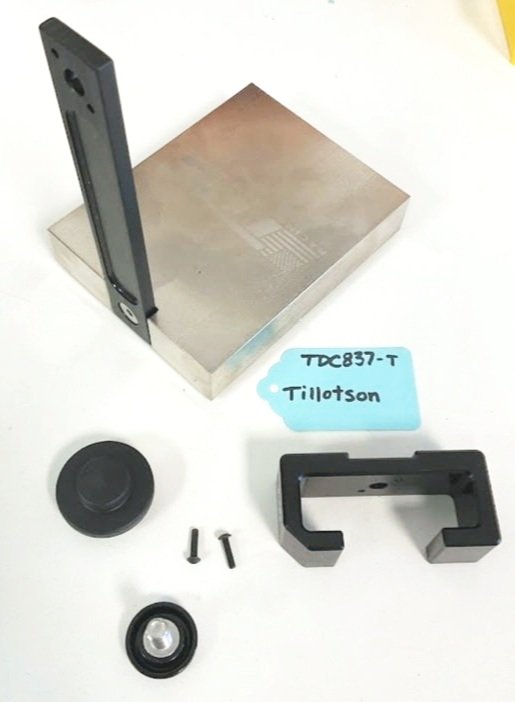

Tillotson HL166 / HL334

TDC837-T

Hardware Needed:

  • Thumbscrew Knob, M8 x 12mm, (Qty 1)

  • Carb Disk Holder (Qty 1)

  • Button Head Screw M3 x 0.50mm, 12mm Long, (Qty 2) 91239A117

Included in ALL carb stands:

  • Carb Stand Base (Qty 1)

  • Carb Stand Upright (Qty 1)

  • S.S. Flat Head, M6 x 1mm, 14mm Long (Qty 1) 92125A237

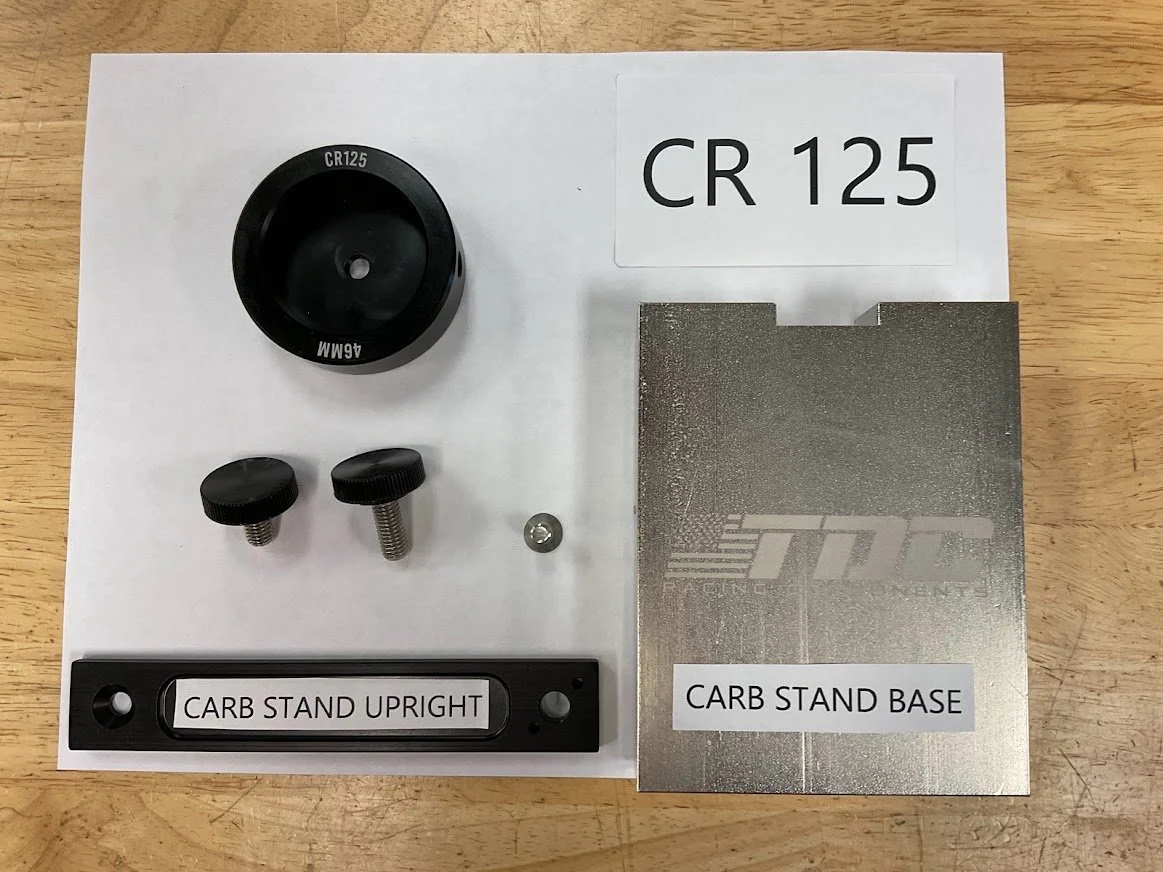

CR125

TDC837-H

Hardware Needed:

  • Thumbscrew Knob, M8 x 12mm (Qty 1)

  • Thumbscrew Knob, M8 x 20mm (Qty 1)

  • 46mm Carb Cup

Included in ALL carb stands:

  • Carb Stand Base (Qty 1)

  • Carb Stand Upright (Qty 1)

  • S.S. Flat Head, M6 x 1mm, 14mm Long (Qty 1) 92125A237
