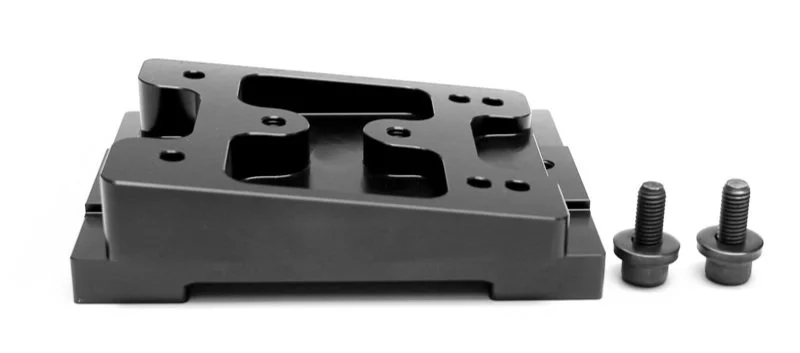

7 Degree (Angled)

TDC 594

• Smaller than lo206

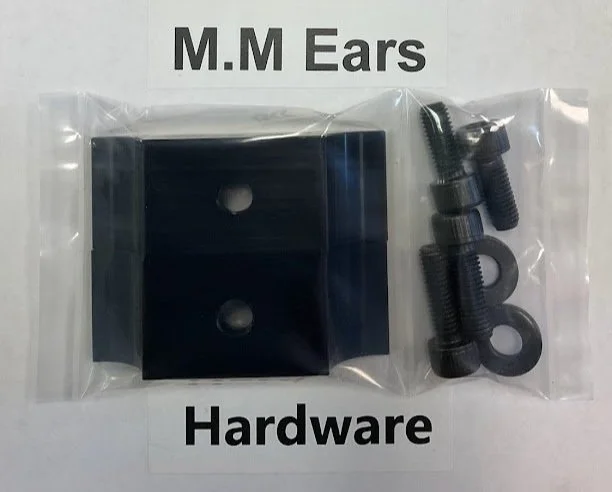

• Package w/ M.M. Ears (Clamps): TDC574 (Qty 2)

Hardware Needed:
-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 25 mm Long, (Qty 2) 91290A520

-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 30 mm Long, (Qty 2) 91290A522

-Black-Oxide Steel Oversized Washer for M10 Screw Size, 10.5 mm ID, 23 mm OD, (Qty 2) 98040A106

Flat - 2 offsets

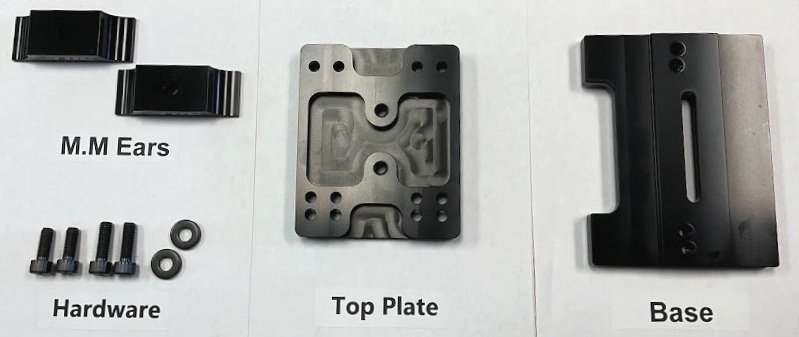

TDC 594-F

• Package w/ M.M. Ears (Clamps): TDC574 (Qty 2)

Hardware Needed:
-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 25 mm Long, (Qty 2) 91290A520

-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 30 mm Long, (Qty 2) 91290A522

-Black-Oxide Steel Oversized Washer for M10 Screw Size, 10.5 mm ID, 23 mm OD, (Qty 2) 98040A106

LO206 / Briggs

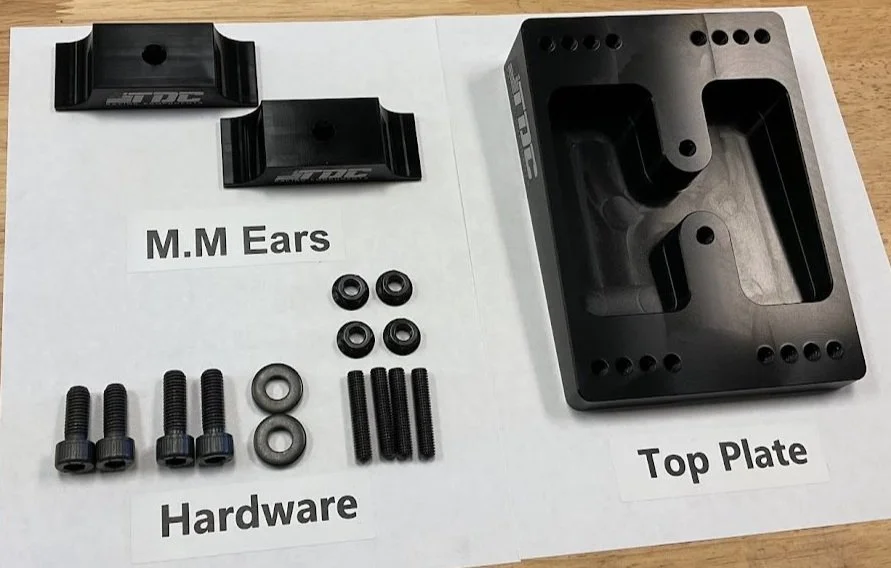

TDC 594-B

• Package w/ M.M. Ears (Clamps): TDC574 (Qty 2)

Hardware Needed:
-Alloy Steel Cup-Point Set Screw, M8 x 1.25 mm Thread, 40 mm Long, (Qty 4) 91390A150
-Medium-Strength Steel Serrated Flange Locknut, Class 8, M8 x 1.25 mm Thread, (Qty 4) 94920A500

-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 25 mm Long, (Qty 2) 91290A520
-Black-Oxide Alloy Steel Socket Head Screw, M10 x 1.5 mm Thread, 30 mm Long, (Qty 2) 91290A522
-Black-Oxide Steel Oversized Washer for M10 Screw Size, 10.5 mm ID, 23 mm OD, (Qty 2) 98040A106
