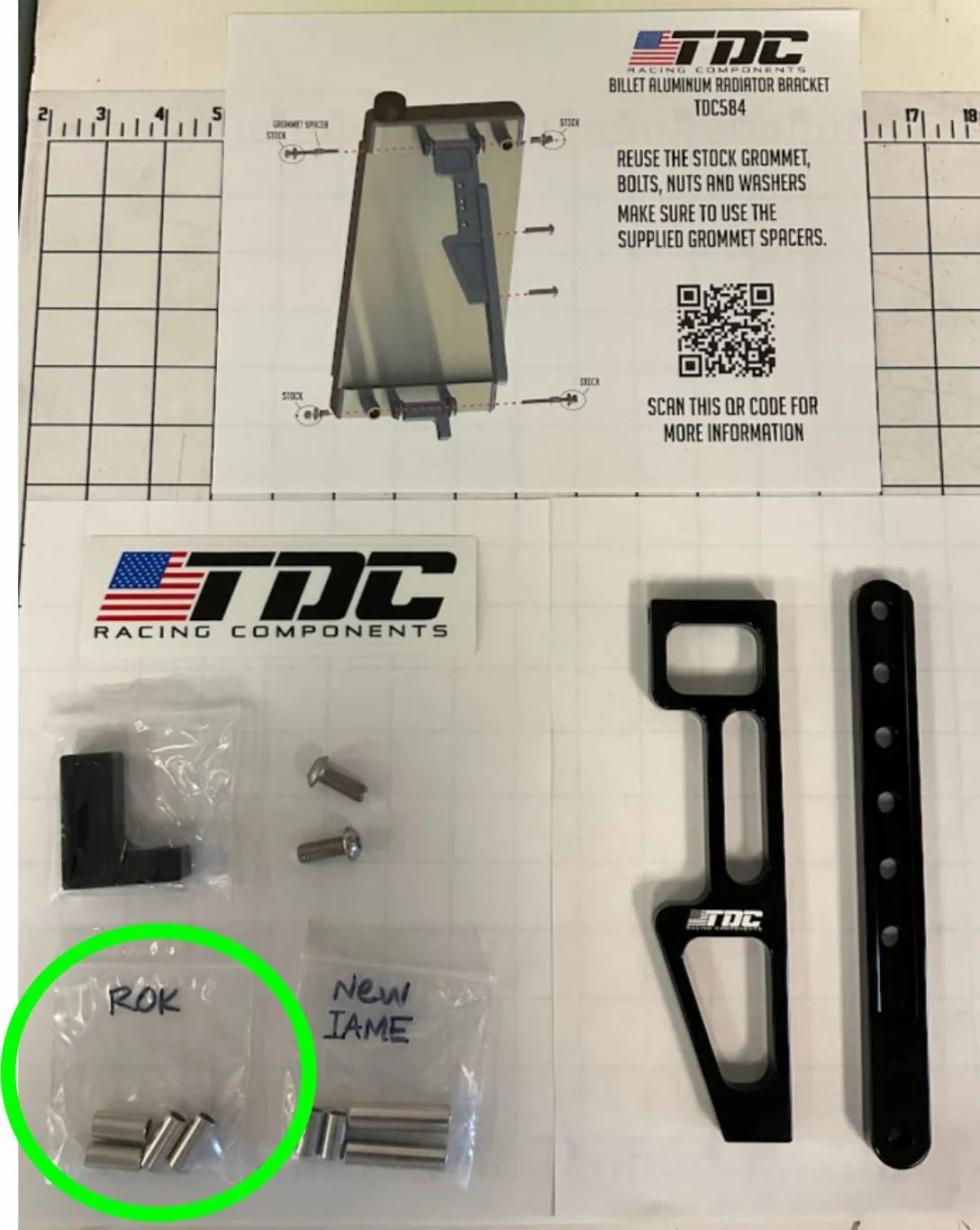

Billet Radiator Mount

TDC584-ROK

Fits stock ROK Radiator

Hardware Needed:

S.S. M8 x 1.25 mm Thread, 20mm Long 92095A284 (Qty 2)
Aluminum Spacer 3/8 OD x .257 ID x 13/16 Long as38-14-52 (Qty 4)
Print Document: Instruction Print Out
(Ship with TDC Racing Sticker)

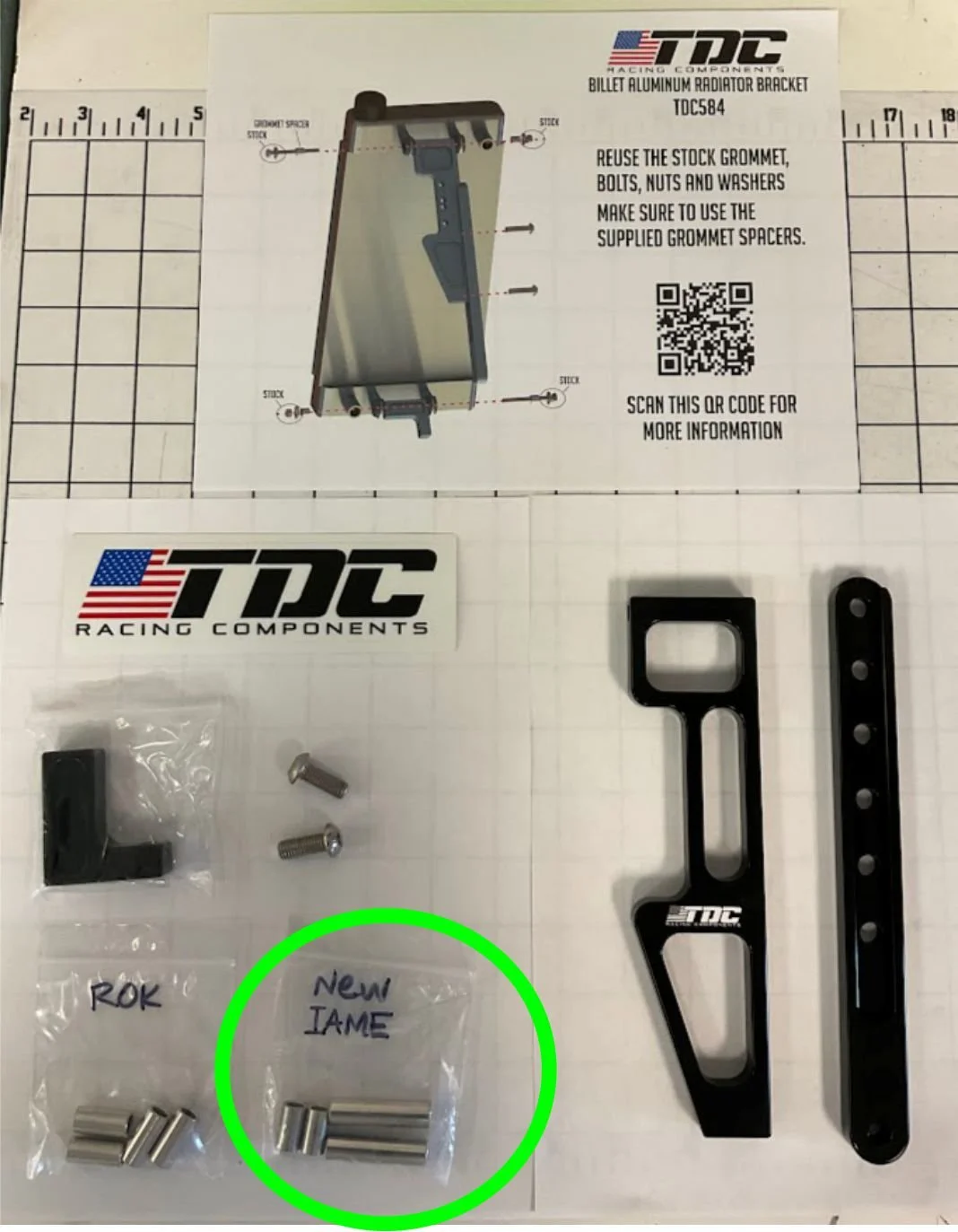

TDC584-IAME

Fits New Iame / x30 Radiator

Hardware Needed:

S.S. M8 x 1.25 mm Thread, 20mm Long 92095A284 (Qty 2)
Aluminum Spacer 3/8 OD x .257 ID x 1-1/2 Long as38-14-96 (Qty 2)
Aluminum Spacer 3/8 OD x .257 ID x 5/8 Long as38-14-40 (Qty 2)
Print Document: Instruction Print Out
(Ship with TDC Racing Sticker)

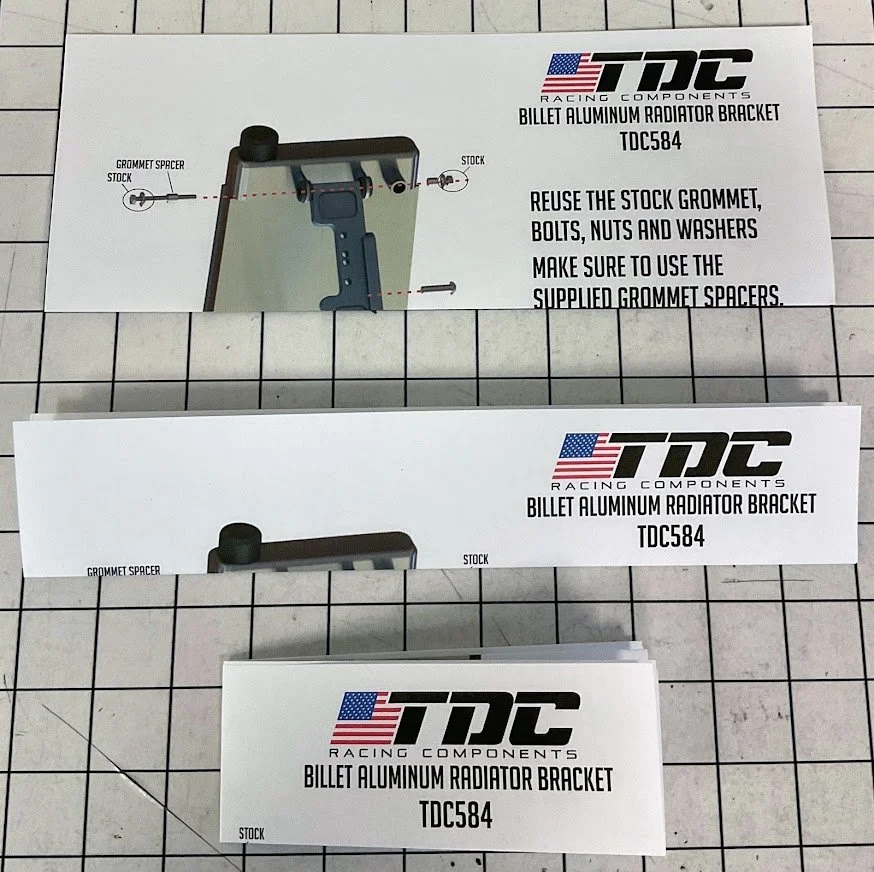

Document Fold Instructions:

Hotdog, Hotdog, Hamburger (Fold in half long ways, fold in half long ways again, fold in half short ways)

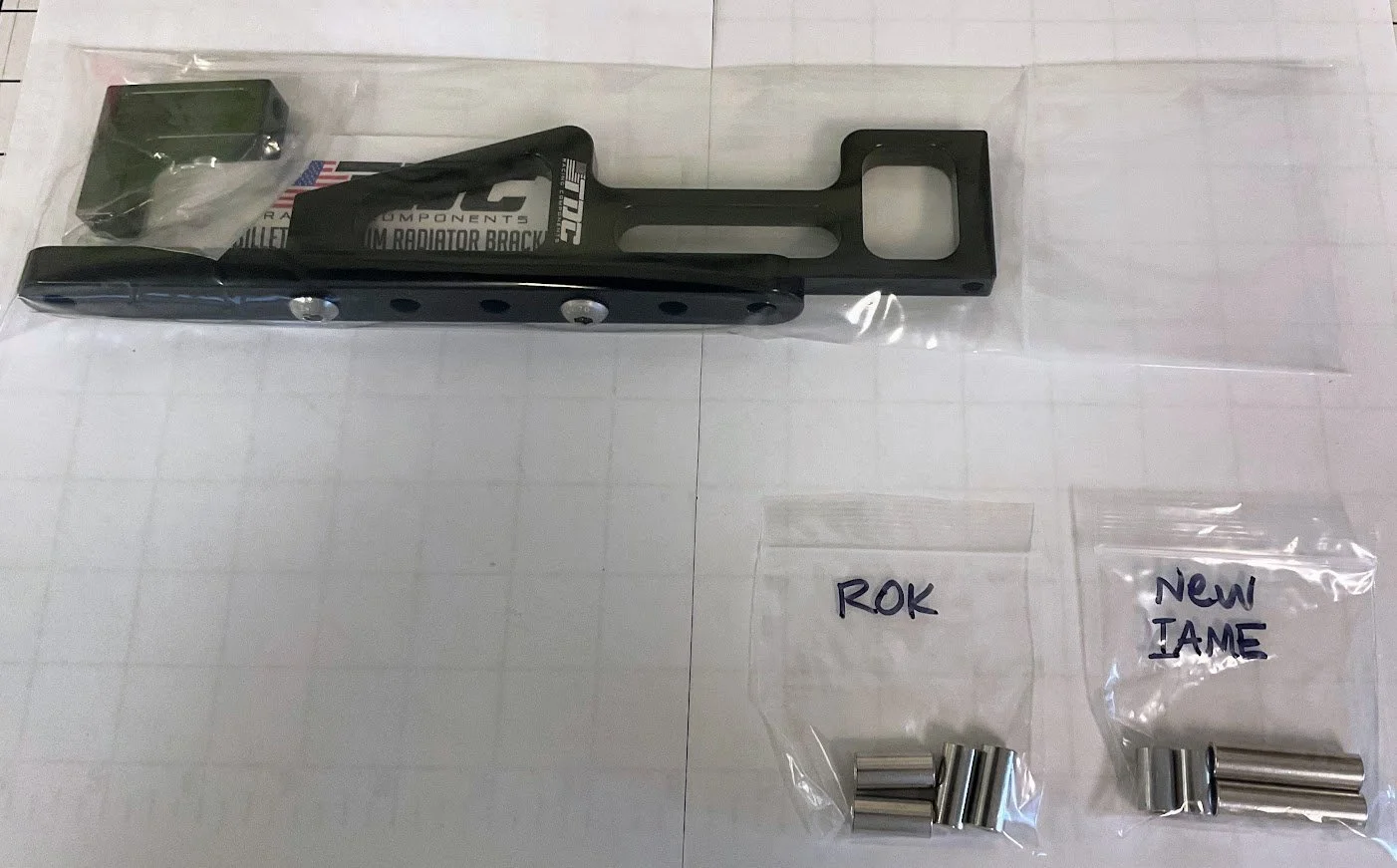

Assemble & Shipping How To

(Above) Lightly tighten two stainless steel screws to assemble two brackets together.

Package all pieces, instructions and sticker.
Ship correct spacers (NOT both sets unless otherwise noted in order)
Seal spacers in.
